Product
Product center
D6437/D6457

The D6437/ D6457 NVMe SSD is DERA's High performance enterprise product line. These products utilize a Gen3 PCIe interface and are compatible with NVMe 1.3. Advanced 112-layer 3D TLC NAND is applied to provide high throughput and IOPS, very low latency, and consistent quality of service. The D6437/ D6457 product line has an efficient firmware architecture which to optimize drive performance and endurance and is available in high capacities up to 7.68TB. The intensive LDPC units and end-to-end data path protection improve the product reliability. It features thermal monitoring and protection, SMBus for out-of-band management.


The DERA D6437/ D6457 NVMe SSD is compatible with mainstream OS and virtualization system. The performance meets the requirements of database and virtualization application. The DERA D6437/ D6457 NVMe SSD tries to keep a balance between performance and cost, to help customers to reduce TCO.


The DERA D6437/ D6457 NVMe SSD has two endurance classes: D6437 (3.84TB, 7.68TB) is 1 drive writes per day (DWPD) @5years; D6457 (3.2TB, 6.4TB) is 3 DWPD @5years.


Functional Features

    • PCIe 3.0 x4

    • NVMe 1.4 compliant

    • Data integrity of enterprise class

    • 3.2TB- 7.68TB capacity options

    • Up to 3.4/ 3.2 GB/s sequential R/ W bandwidth

      Up to 810K/ 385K 4KB random R/ W IOPS

    • 3D TLC NAND

    • Native driver support of mainstream operating systems and hypervisors

    • UEFI bootable

    • Surprise hot-pluggable


Product Features
Software-hardware Co-designed
Data Integrity
High Performance
The 2nd Generation ASIC controller of DERA D6437/ D6457 NVMe SSD is developed by DERA with software-hardware co-designed methodology, achieved enterprise-class data integrity, many built-in hardware acceleration units, sophisticated NAND flash management, and performance aggregation in a power-efficient way. Architected with advanced 3D TLC NAND, D6437/ D6457 deliver a reliable and high performance NVMe storage solution. D6437/ D6457 offer endurance and capacity options of 3.84TB, 7.68TB at 1 DWPD (5yrs), and 3.2TB, 6.4TB at 3 DWPD (5yrs).
DERA D6437/ D6457 NVMe SSD realized intense hardware LDPC units, end-to-end protection on the whole data paths against silent errors, adaptive redundancy protection among independent NAND units, and protection against unexpected power-losses, which are forged into an integrated protection for user data. In addition, D6437/ D6457 NVMe SSD constantly sense drive's healthy and react in time accordingly, which is available for host management software to perceive and handle potential drive failure.
DERA D6437/ D6457 NVMe SSD achieved high performance with low latency. Sustained random write IOPS up to 400K, random read/ write latency low to 76/ 11us. Optimized FTL algorithm sufficiently anticipate the extreme conditions of highly-intense workloads and workload variations with sophisticated scheduling and controls over front-end I/O demands and FTL backend activities, ensuring a stable performance in all cases. D6437/ D6457 NVMe SSD deliver a performance consistency above 90% in significantly heavy random I/O workloads.
Application and Load

  • Database

  • Cloud Computing

  • Streaming, CDN

  • Big Data Analytics

  • AI/ ML/ DL Training

  • Software Defined Storage

  • Banking & Telecom

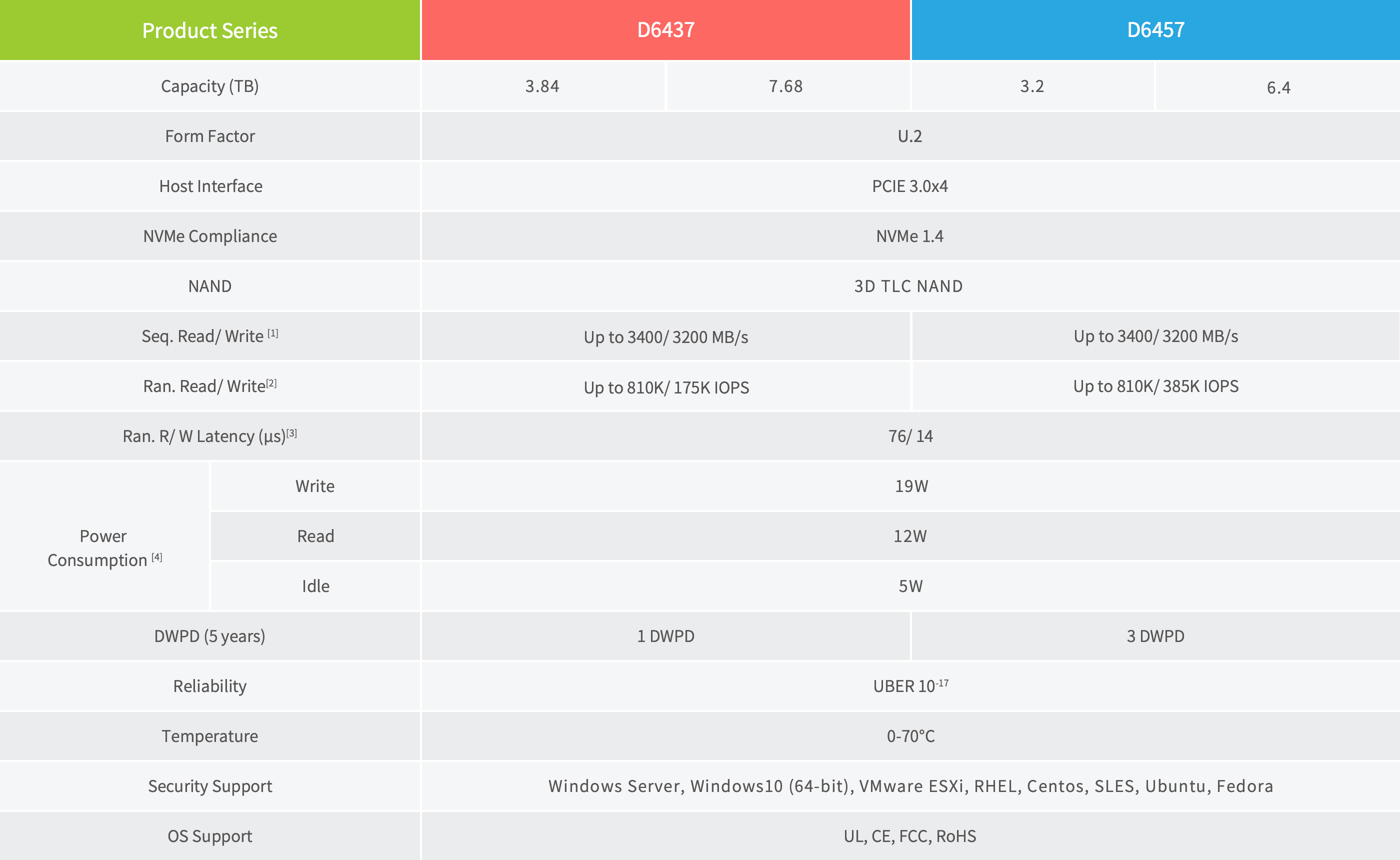

Product Parameters
Product Series
D6437D6457
Capacity3.84TB，7.68TB3.2TB，6.4TB
Form FactorU.2
Host InterfacePCIe 3.0 x 4
NVMe ComplianceNVMe 1.4
NAND3D TLC NAND
Seq. R/ W [1]Up to 3400/ 3200 MB/sUp to 3400/ 3200 MB/s
Ran. Read/ Write IOPS [2]Up to 810K/ 175KUp to 810K/ 385K
Ran. R/ WLatency (us) [4]76/ 14
Power [5]Write19W
Read12W
Idle5W
DWPD（5 years）1 DWPD3 DWPD
ReliabilityUBER 10-17
Temperature0-70℃
OS SupportWindows Server, Windows10 (64-bit), VMware ESXi, RHEL, Centos, SLES, Ubuntu, Fedora
Security SupportUL, CE, FCC, RoHS


[1] 100%LBA, OIO64 (TC=1, QD=64).

[2] 100%LBA, measured with OIO256 (TC=4, QD=64).

[3] 100%LBA, OIO1 (TC=1, QD=1).

[4] 100%LBA, Sequential R/W power consumption is measured with 128KB, OIO64(TC=1，QD=64) which is lower than Random operation. Random R/W measured with 4KB, OIO256 (TC=4, QD=64). Scope trigger over 100ms sample period.

*Performances measured by FIO tool on linux, result may differ according to testing platform.1MB/s = 1,000,000 bytes/ second.

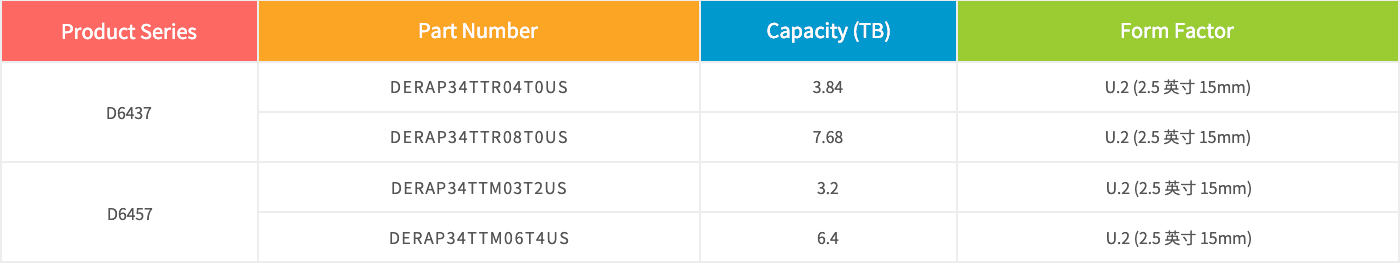

Model List
Product SeriesPart NumberCapacity（TB）Form Factor
D6437DERAP34TTR04T0US3.84U.2 (2.5-inch 15 mm)
DERAP34TTR08T0US7.68U.2 (2.5-inch 15 mm)
D6457
DERAP34TTM03T2US3.2U.2 (2.5-inch 15 mm)
DERAP34TTM06T2US6.4U.2 (2.5-inch 15 mm)
