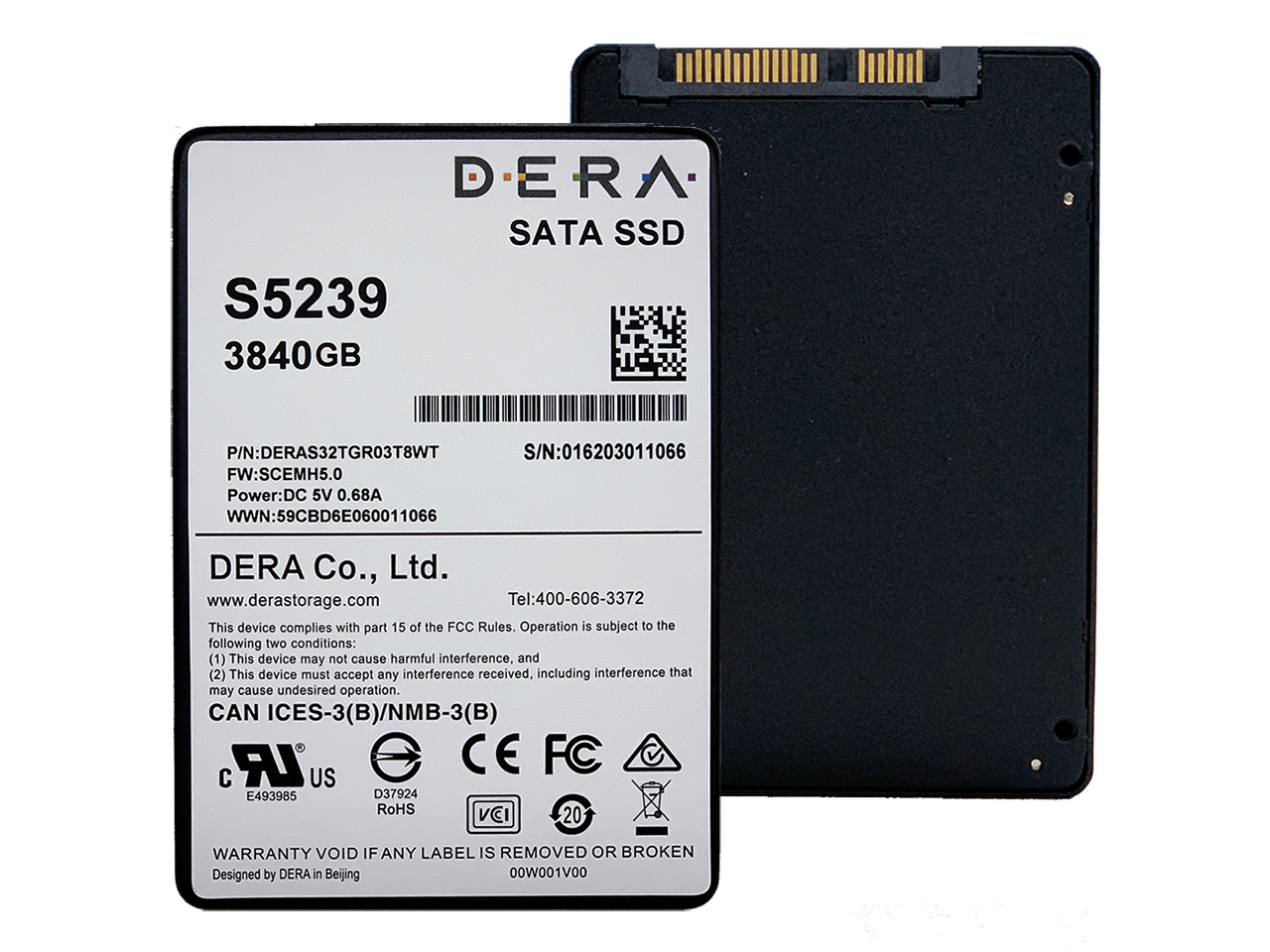

S5239

DERA S5239 enterprise-class SATA SSD delivers outstanding performance, low latency and high reliability to optimize storage system while reducing TCO.

Functional Features
    • SATA 3 compliance

    • 112-layer 3D TLC NAND

    • 2.5-inch 7mm form factor

    • Up to 550/ 520MB/s sequential R/ W, Up to 95K/ 51K random R/ W IOPS

    • End-to-End data integrity protection

    • Power loss data protection

Product Features
Reduce Storage TCO
Outstanding Performance
Data Integrity Protection
DERA S5239 enterprise-class SATA SSD offers various capacities options, include 480GB to 3840GB in a standard 2.5-inch. The larger capacity drives require lower power consumption and cooling conditions than conventional HDD, advanced 112-layer 3D TLC NAND helps to reduce the storage total cost of ownership (TCO). DERA S5239 SATA SSD is ideal solution to upgrade your storage system.
S5239 SATA SSD fully utilizes and maximize the SATA 6Gbps interface, deliviers sustained performance up to 550MB/s in Sequential Read and 520MB/s in Sequential Write. Optimized for read-intensive and mix-use workloads, outstanding performance accelerates your data center, media streaming, online transaction processing (OLTP) applications. Lower latency and QoS (Quality of Service) offer lower response time and higher service level.
The intense hardware built-in LDPC ECC units throttle errors occurred during access to NAND device, ensure your data be protected throughout the whole life of drive. End-to-End data protection safeguards the data from corruption at the whole way from host device to the NAND flash. Power loss data protection ensures data integrity of the drive and protects against data corruption in the event of power loss or system failure.
Application and Load
  • Database

  • Virtualization

  • Streaming, CDN

  • Big Data Analytics

  • Software Defined Storage

Product Parameters
Product SeriesS5239
Capacity(TB)480GB,960GB,1920GB,3840GB
Form Factor2.5-inch 7mm
Host InterfaceSATA 6Gb/s
128KB Seq. R/ W [1]Up to 550/ 520 MB/s
4KB Rand. R/ W IOPS [2]Up to 95K/ 51K
ReliabilityUBER < 1 sector per 1017  bits read
Avg. R/ W Latency [3]122/ 24 µs
Power [4]Read/ Write2.6 W/ 3.4 W
Idle1.5 W
DWPD(5 years)1
Temperature0-70℃
Features

LDPC, End-to-End data protection, Power Loss protection


[1] 100%LBA, 128KB sequential R/ W, 32 queue depth with 1 worker.

[2] 100%LBA, 4KB random R/ W, 32 queue depth with 1 worker.

[3] 100%LBA, 4KB random R/ W, 1 queue depth with 1 worker.

[4] 100%LBA, Sequential R/ W power consumption is measured with 128KB, 32 queue depth and 1 worker. Random R/ W measured with 4KB, 32 queue depth and 1 worker.

*Performances measured using FIO in linux OS, result may differ according to testing platforms.1MB/s = 1,000,000 bytes/ second

Model List
Product SeriesPart NumberCapacityForm Factor
S5239DERAS32TGR0480WT480GB2.5" (7mm)
DERAS32TGR0960WT960GB2.5" (7mm)
DERAS32TGR01T9WT
1920GB2.5" (7mm)
DERAS32TGR03T8WT3840GB2.5" (7mm)
