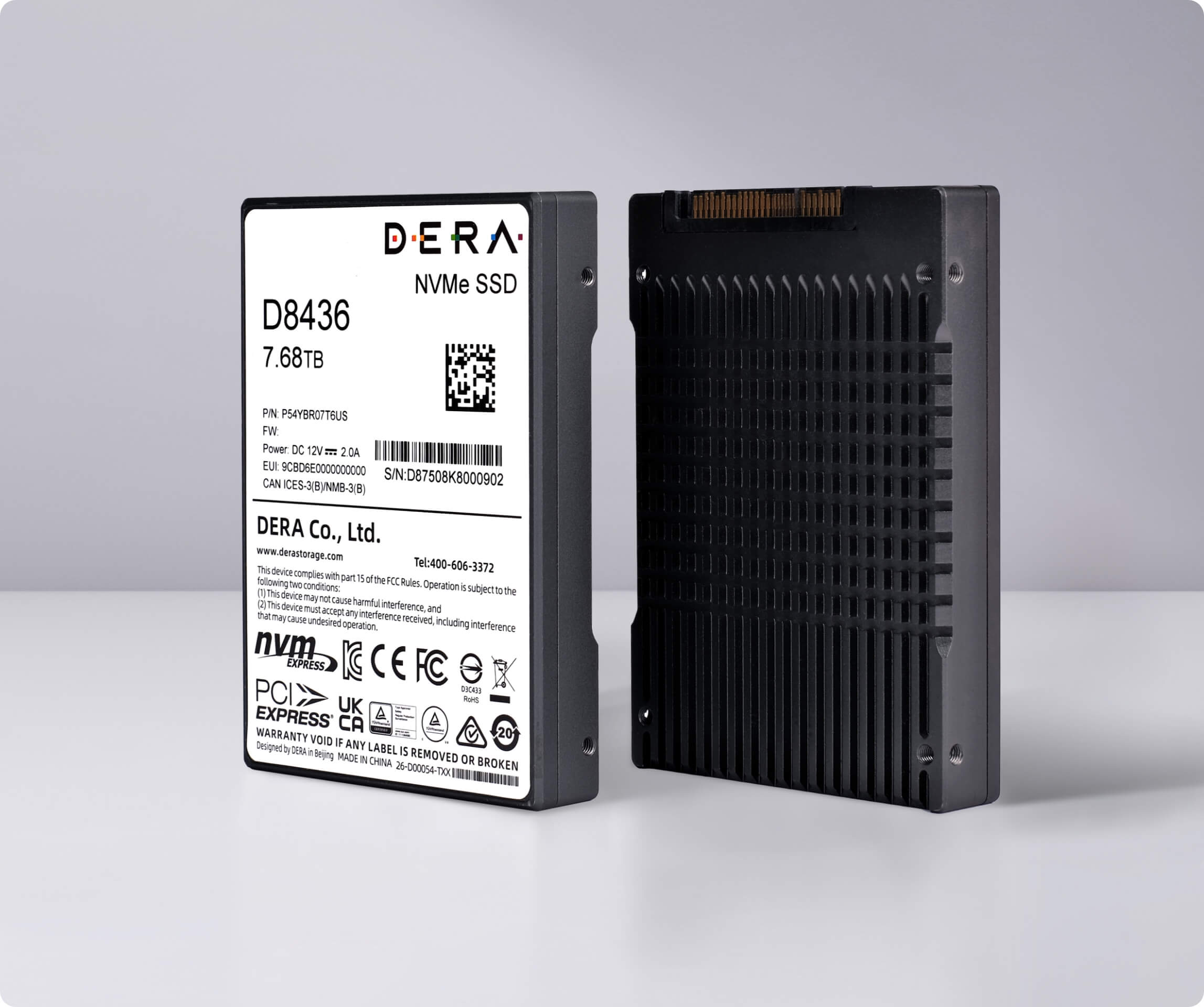

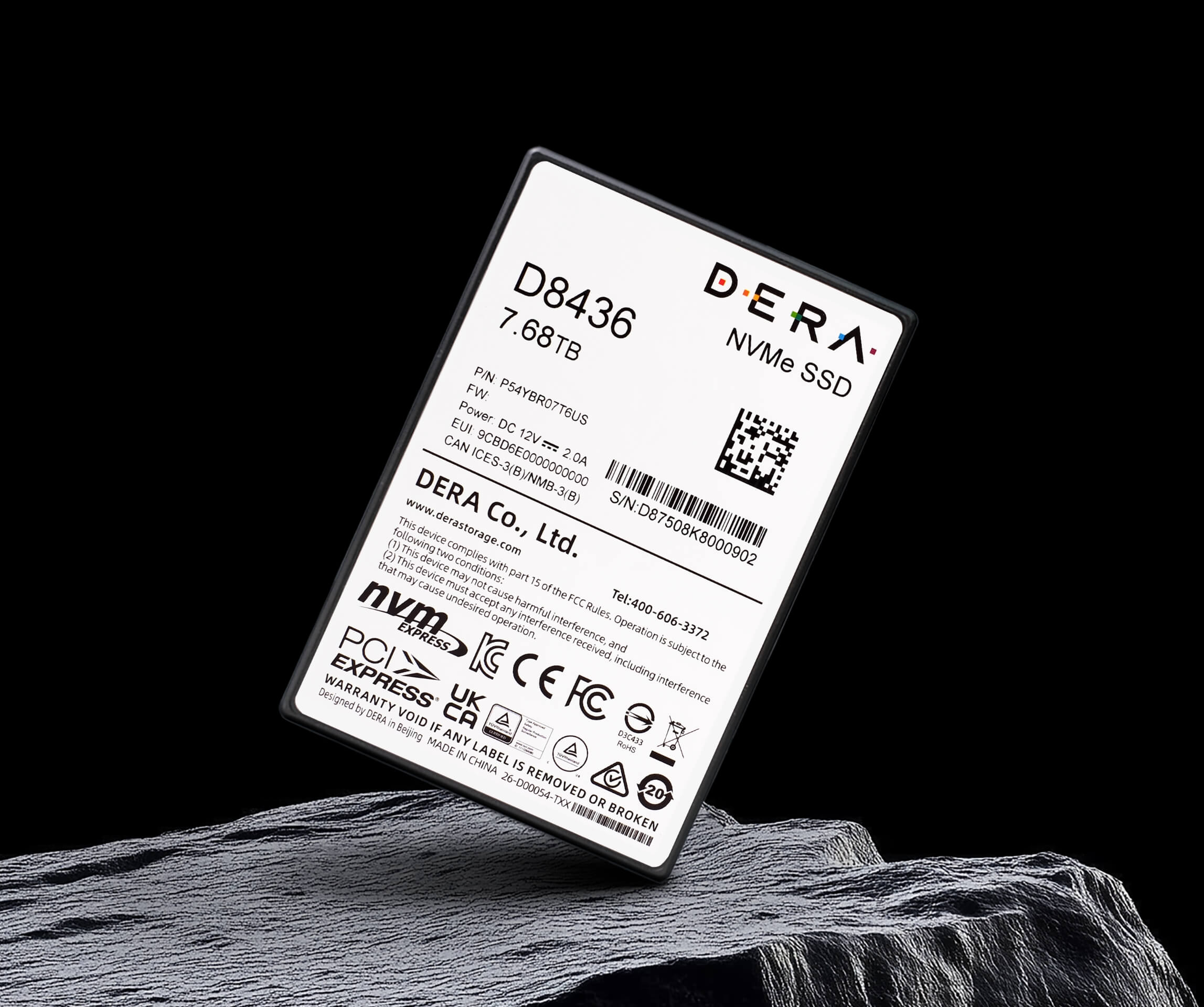

D8436/ D8456

DERA first domestic PCIe 5.0 enterprise NVMe SSD, featuring T-Head Zhenyue 510 controller and YMTC latest 3D TLC NAND flash, fully supports NVMe 2.0 Protocol.

The D8436/D8456 series delivers up to 14.2/10.5 GB/s Seq.R/ W Bandwidth, up to 3400K/1150K Rand.R/ W IOPS, with the performance per watt improvement of over 70%. Designed with 1 DWPD (D8436) and 3 DWPD (D8456), they cater to varying write requirements, providing high-performance storage solutions for scenarios such as AI training and cloud computing.

KEY FEATURES

NVMe 2.0 compliant
Support U.2 Form Factor
Data integrity of enterprise class
3.2TB-15.36TB capacity options
Seq.R/W Bandwidth Up to 14.2/10.5 GB/s
Rand.R/W Up to 3400K/1150K IOPS
Support hot-plug
Support Power Loss Data Protection
Support NVMe-MI Management interface
Support Telemetry Log Collection
Support Firmware Online Update (NVMe-MI over MCTP)
Support UEFI/Legacy BIOS Bootable
Support Secure Erase
Support advanced device self-test
Support for mainstream operating system native drivers

KEY BENEFITS

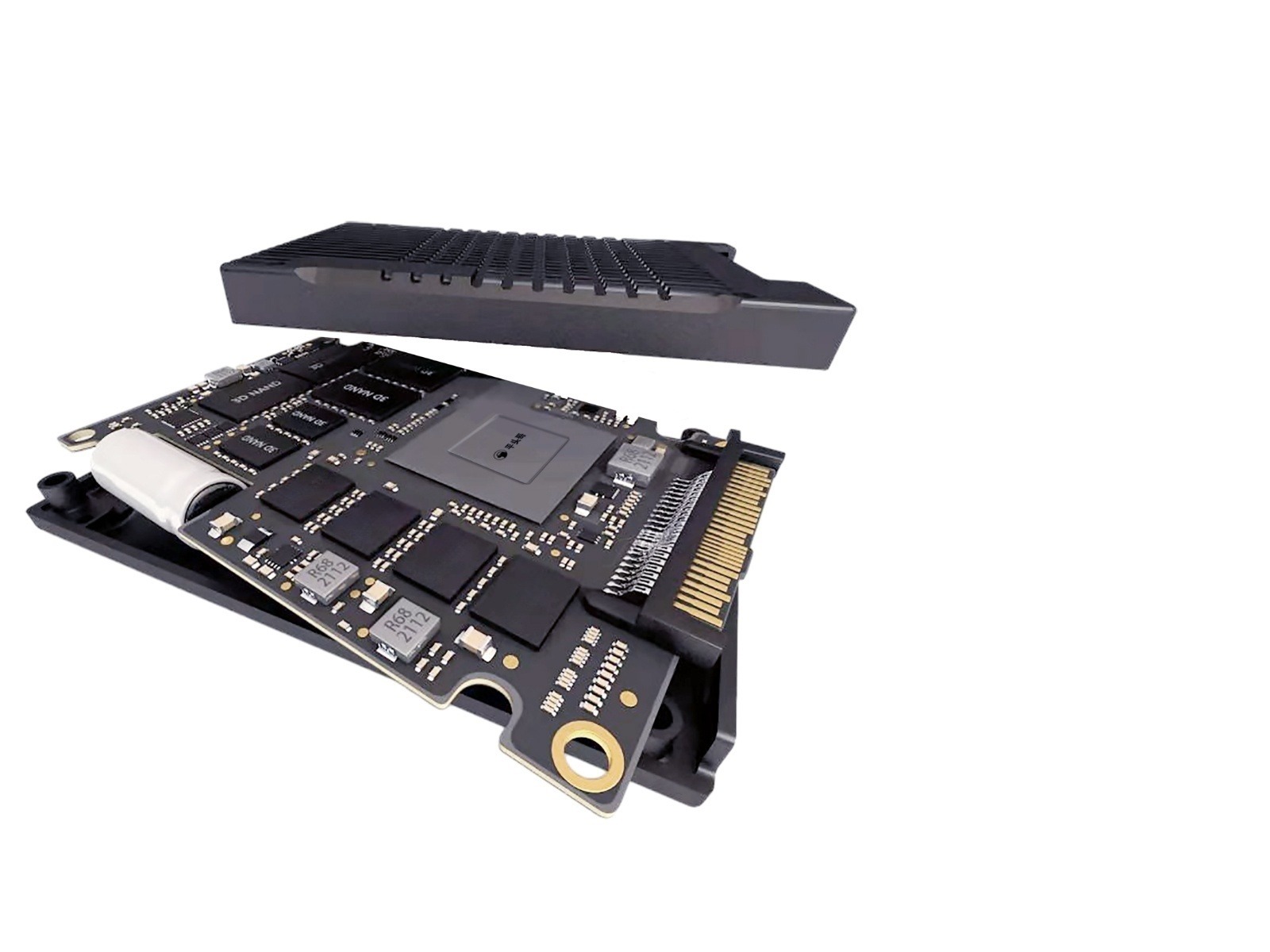

PCIe 5.0 Architecture

DERA D8436/D8456 NVMe SSD adopt a new architecture of domestically produced PCIe 5.0 controller, which supports NVMe 2.0 protocol and various important enterprise level functions including hardware security, data path protection, power down protection, secure erase, advanced device self-test, firmware online update, etc. D8436/D8456 offer endurance and capacity options of 1 DWPD (5 years) 3.84TB/7.68TB/15.36TB, and 3 DWPD (5 years) 3.2TB/6.4TB/12.8TB, to meet the business needs of different enterprise level application scenarios.

Enterprise-Class Data Integrity

DERA D8436/D8456 NVMe SSD achieves an organic combination of out of band management, adaptive dynamic RAID protection, end-to-end data protection, unexpected power-losses and processing technologies, providing users with comprehensive data security protection. The D8436/D8456 NVMe SSD monitors the health status of the device in real-time during operation and takes corresponding actions in a timely manner. The upper level management software can monitor the device status and accurately predict and handle potential faults.

Ultra Low Latency and High Performance

DERA D8436/D8456 NVMe SSD has the advantages of high performance, low latency, and stable performance. The steady-state random write can reach up to 1150K IOPS, and the random read/write latency is as low as 55/5us, providing users with a high-speed processing and low latency user experience for data center business. Meanwhile, due to the innovation of SSD controller architecture, firmware management algorithms intelligently schedule and control different types of I/O requests, ensuring that device performance remains stable under extreme conditions of high pressure and variable workloads. D8436/D8456 NVMe SSD deliver a performance consistency above 95% in significantly heavy random I/O workloads.

TECHNICAL SPECIFICATIONS

Product Series		D8436			D8456
Capacity （TB）		3.84	7.68	15.36	3.2	6.4	12.8
Form Factor		U.2
Host Interface		PCIe 5.0 x4
NVMe Compliance		NVMe 2.0
NAND		3D TLC NAND
Seq. Read/Write^[1]		Up to 14.2/10.5 GB/s			Up to 14.2/10.5 GB/s
Ran. Read/Write^[2]		Up to 3400K/580K IOPS			Up to 3400K/1150K IOPS
Ran. R/W Latency(µs)^[3]		55/5
Power^[4]	Max	20W
Power^[4]	Idle	6W
DWPD (5 years)		1 DWPD			3 DWPD
UBER		< 10^-18
MTBF		2.5 million hours
Temperature		0-77°C
Feature		Hot-Plug, On-line Firmware update, NVMe-MI over MCTP, E2E Data Protection, Variable Sector Size, Advanced Device self-test, Secure Erase, EUI64/NGUID

[1] 100% LBA，Seq. Read/Write 128KB block size;
[2] 100% LBA，Ran. Read/Write 4KB block size;
[3] 100% LBA，Ran. Read/Write 4KB block size，TC=1，QD=1；TC(Number of threads)，QD(queue depth)；
[4] 100% LBA，Seq. Read/Write 128KB block size, Ran. Read/Write 4KB block size，Sampling interval time 100ms.

*Performances measured by FIO tool on Linux, result may differ according to testing platform. 1MB/s = 1,000,000 bytes/second.

SOLUTION

Cloud Computing

Enterprise SSDs provide efficient and stable storage support for cloud computing with advantages such as ultra-high-speed read/write, high reliability & low latency, high energy efficiency & low power consumption, flexible elastic expansion, and end-to-end data security protection. These significantly enhance resource utilization efficiency and reduce operating costs.

Big Data

Enterprise SSDs, with their high-speed read/write, low latency, and high reliability, combined with intelligent caching and hierarchical storage, provide high-performance, low-cost, and easily scalable integrated solutions for big data storage and analysis.

During peak promotions like "11.11" and "618", an e-commerce platform faced massive pressure on its cloud systems. Leveraging deep expertise in cloud databases and astute insights into SSD development trends, the company chose DERA NVMe SSDs to boost performance. With the close on-site collaboration of DERA's technical team, the platform ensured stable and reliable operation of its cloud storage system.

Challenge

High concurrency and extreme workloads | Urgent need to improve data access efficiency | Pressing demand for system performance enhancement
Solution

DERA collaborated with the client on a development partnership, leveraging Open-Channel technology to migrate key SSD modules to the host side. This enabled deep custom hardware-software integration of the storage system, allowing for true workload-specific design and optimization tailored to different business load characteristics.
Benefits

As an independent storage engine, the Open-Channel project (paired with RDS) has successfully integrated with multiple critical business lines. It achieves performance improvements that surpass what can be attained by solely enhancing storage performance or optimizing software logic in peer-grade products.

DOWNLOAD

DERA D8436 D8456 Series NVMe SSD Brief
